MAX.PRESSURE - 7Kgf/cm2
MAX.TEMPERATURE - 100oC
GLASS - HARD GLASS

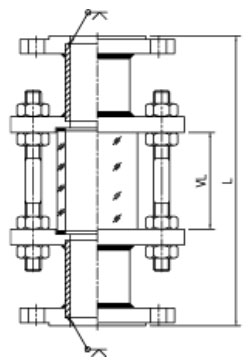

SIZE A (in) |
SIZE A (in)
|
H (APPROX.)
|
V. L |
15 ( 1/2 ) |
160 |
130 |
40 |
20 ( 3/4 ) |
160 |
130 |
40 |
25 ( 1 ) |
170 |
135 |
50 |
32 (1-1/4 ) |
200 |
160 |
65 |
40 (1-1/2 ) |
200 |
160 |
65 |
50 ( 2 ) |
220 |
175 |
75 |
65 (2-1/2 ) |
270 |
200 |
105 |
80 ( 3 ) |
270 |
200 |
105 |
100 ( 4 ) |
320 |
240 |
130 |
125 ( 5 ) |
380 |
280 |
170 |
150 ( 6 ) |
420 |
310 |
200 |
200 ( 8 ) |
500 |
370 |
260 |
