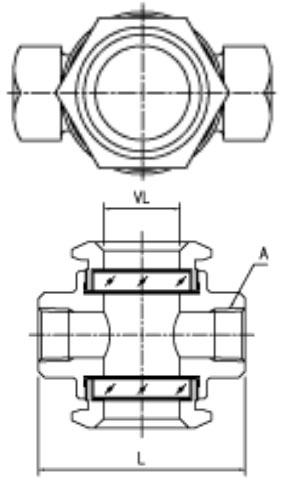

See Through type, model HSG-1FA
CONNECTIONS - SCREWED END
MAX.PRESSURE - 30 kgf/cm2
MAX.TEMPERATURE - 300กษ
GLASS - TEMPERED GLASS
SIZE A (in)
SIZE A (in)
H (APPROX.)
V. L
8 ( 1/4 )
100
70
30
10 ( 3/8 )
120
105
40
15 ( 1/2 )
120
105
40
20 ( 3/4 )
120
105
40
25 ( 1 )
130
115
50
32 (1-1/4 )
145
130
65
40 (1-1/2 )
160
130
65
50 ( 2 )
180
140
80



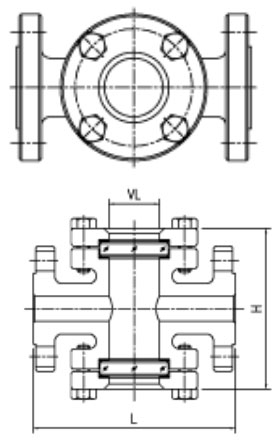

See Through type, model HSG-1FB
CONNECTIONS - SCREWED END
MAX.PRESSURE - 30Kgf/cm2
MAX.TEMPERATURE - 300กษ
GLASS - TEMPERED GLASS
SIZE A (in)
SIZE A (in)
H (APPROX.)
V. L
15( 1/2 )
160
130
40
20 ( 3/4 )
160
130
40
25 ( 1 )
170
135
50
32 (1-1/4 )
200
160
65
40 (1-1/2 )
200
160
65
50 ( 2 )
220
175
75
65 (2-1/2 )
270
200
105
80 ( 3 )
270
200
105
100 ( 4 )
320
240
130
125 ( 5 )
380
280
170
150 ( 6 )
420
310
200
200 ( 8 )
500
370
260
